Radioddity DB35-UV Dual Band Radio | 35W High Power | Detachable Faceplate | NRC Noise Reduction | 7-Color LCD Display | Programming Cable Included
Radioddity DB35-UV Dual Band Radio | 35W High Power | Detachable Faceplate | NRC Noise Reduction | 7-Color LCD Display | Programming Cable Included
Equip your overland vehicle with the Radioddity DB35-UV mobile radio, built
for reliable communication during off-road travel, outdoor adventures, and
emergency situations. Designed for trucks, compact SUVs, and camper vans with
limited dashboard space, the detachable faceplate allows the main unit to be
mounted under seats or inside compartments for a cleaner installation with
reduced dashboard clutter.
Supporting both VHF and UHF operation, this analog mobile transceiver delivers
up to 35W output and 80 programmable channels. The integrated NRC noise
reduction system offers five adjustable levels to help reduce engine, wind, and
road noise, improving voice clarity during highway driving and off-road use.
Combining flexible installation, dependable performance, and enhanced audio
clarity, the DB35-UV is well suited for everyday mobile operation, outdoor
travel, and emergency communications.
Active Cooling Fan:
Heavy-duty integrated rear cooling fan ensures efficient heat dissipation during high-power prolonged transmissions for maximum device reliability.
Multi-function Mic:
With a full numeric keypad and dedicated shortcut keys for quick access to VOX hands-free operation, noise reduction, and channel scanning.
Dual-Band Transceiver:
Supports 2m and 70cm bands with 80 programmable channels for amateur radio repeaters and local communications, ideal for outdoor and off-grid use.
7-Color Backlit Display:
High-contrast LCD screen with 7 selectable backlight colors for clear visibility and easy reading in low-light and nighttime driving conditions.
Specifications：
Frequency Range (TX & RX): 136–174 MHz (VHF) / 400–470 MHz (UHF)
Power Output: High 35W / Low 15W
Channel Capacity: 80 programmable channels
Channel Spacing: 12.5 kHz (narrowband) / 25 kHz (wideband)
Noise Reduction: Adjustable Level 1–5
VOX Function: Adjustable 5 sensitivity levels
Squelch Levels: 10 selectable levels (0–9)
Operating Voltage: 13.8V DC
Operating Temperature: -30°C to +60°C
Dimensions: 6.65 × 6.57 × 1.81 in (169 × 167 × 46 mm)
QA:

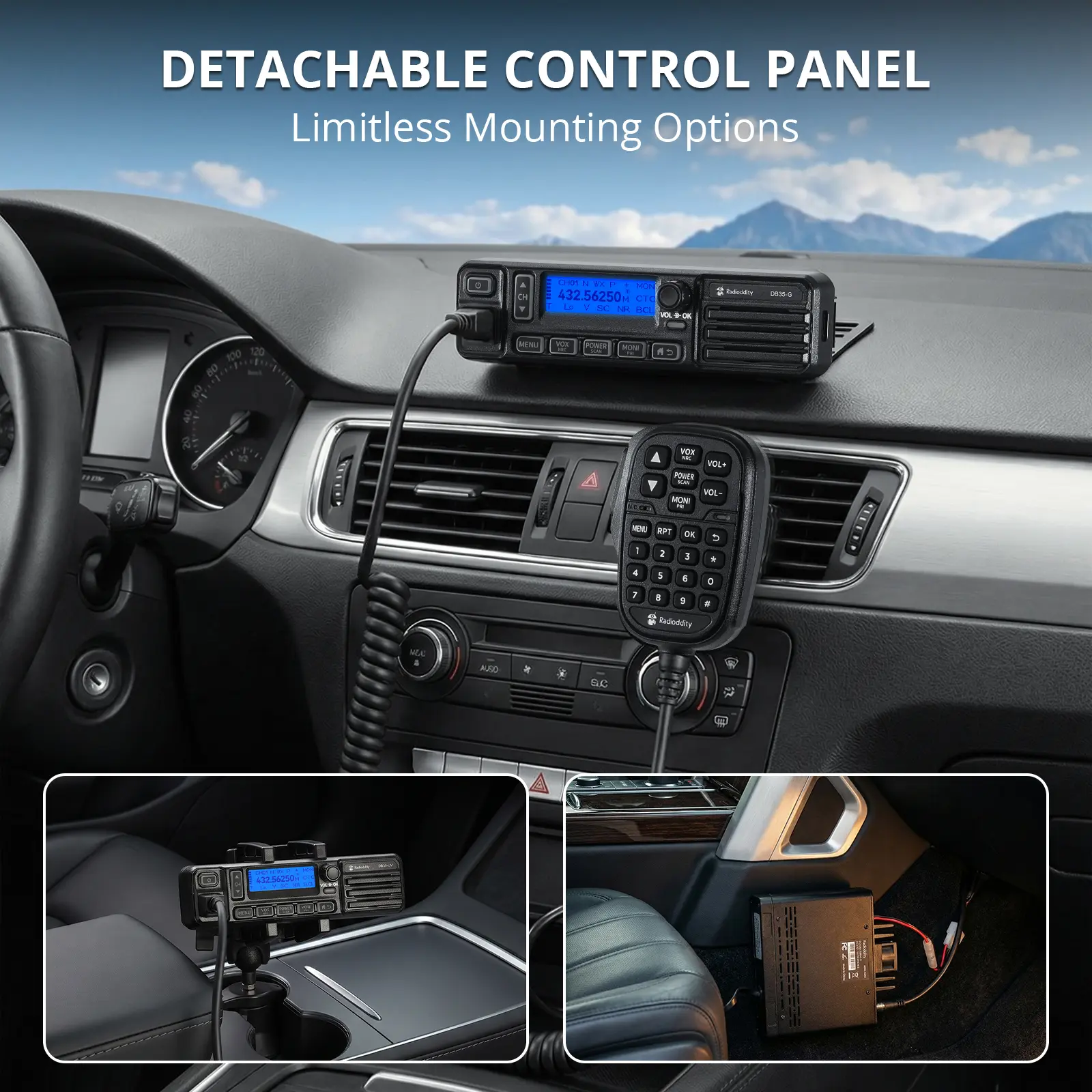

Q: Can the control panel be mounted separately from the main unit?
A: Yes. The DB35-UV includes a detachable faceplate with RJ45 connection for
remote mounting. For expanded installation options, an optional mounting bracket
is available (sold separately).
Q: How does the NRC feature improve my off-roading experience?
A: The Digital Noise Reduction (NRC) intelligently filters out constant
background sounds like engine roar, tire hum, and wind noise. This ensures that
you hear clear voice audio rather than static, even at high speeds.
Q: Does this transceiver support repeater access for emergency off-grid
communication?
A: Yes. It supports programmable repeater offset frequencies and shift
directions (+/-), allowing access to local repeaters for extended communication
range.
What’s in the box?
1 x DB35-UV Radio
1 x Microphone
1 x Programming Cable
1 x Power Cable
1 x RJ45 to RJ45 Cable
1 x Mounting Bracket
1 x Microphone Hanger
1 x Anti-slip Mat for Hanger
2 x Adjusting Screws for Hanger
2 x Spare Fuses
4 x Black Screws and Pads
3 x Tapping Screws
3 x Pads for Bracket
6 x Pads
